The Castles Saturn 1000 contains a Li-ion battery and can be operated without being permanently connected to power. If the battery level is low, it must be connected to power and recharged.



Charging your device

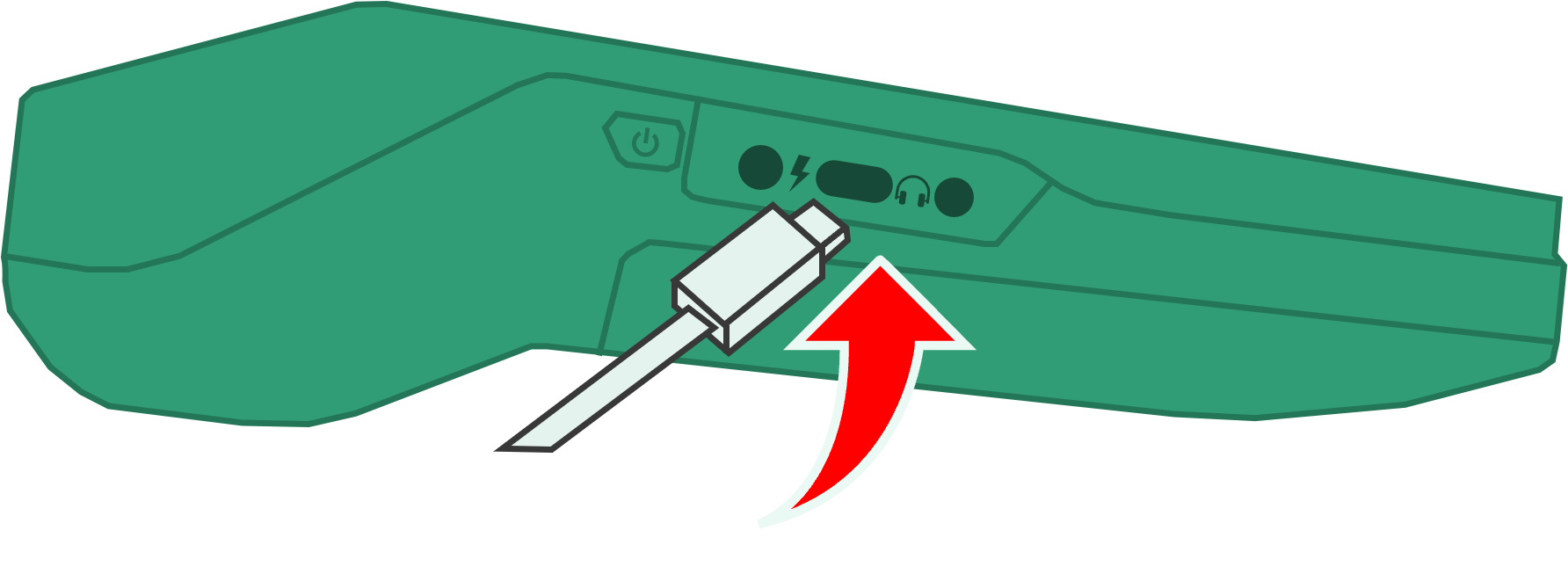

Connect the enclosed USB-C charging cable to the left side of the device. A red light will illuminate when the device is connected to power.




Turning device on/off

Turn on Press and hold the power button on the left side of the device until the display turns on.
Restart Press the power button on the left side of the device and select "Restart" from the menu displayed.
Turn off Press the power button on the left side of the device and select "Power off" from the menu displayed.



Replacing the battery

  1. Power the terminal off by pressing the power button on the left side of the device selecting "Power off" from the menu displayed.
  2. Remove the rear cover of the terminal by gently squeezing the top left and right corners of the cover and sliding it downward.
  3. Remove the existing battery by lifting the clip on the left.
  4. Install the new battery by lining up the pins on the right of the battery and then pushing it into place.
  5. Re-attach the rear cover by sliding it upward and clicking it into place.
  6. Power on the device by pressing and holding the power button on the left side of the device until the display turns on.
